Intrinsically safe temperature sensor – iTHERM ModuLine TM131
F
L
E
X

  • Simple products

  • Easy to select, install and operate

Technical excellence

Simplicity

  • Standard products

  • Reliable, robust and low-maintenance

Technical excellence

Simplicity

  • High-end products

  • Highly functional and convenient

Technical excellence

Simplicity

  • Specialized products

  • Designed for demanding applications

Technical excellence

Simplicity

Variable

FLEX selections Technical excellence Simplicity
  • F
  • L
  • E
  • X

Fundamental selection

Meet your basic measurement needs

Technical excellence
Simplicity
  • F
  • L
  • E
  • X

Lean selection

Handle your core processes easily

Technical excellence
Simplicity
  • F
  • L
  • E
  • X

Extended selection

Optimize your processes with innovative technologies

Technical excellence
Simplicity
  • F
  • L
  • E
  • X

Xpert selection

Master your most challenging applications

Technical excellence
Simplicity

Variable
Intrinsically safe temperature sensor – iTHERM ModuLine TM131 iTHERM ModuLine TM131 Industrial modular thermometer
iTHERM ModuLine TM131 Industrial modular thermometer

Metric RTD/TC thermometer with welded thermowell for a wide range of industrial applications

Prices temporarily unavailable
Price on request
activating price
price: provide information
bookmark icon bookmark icon
Accuracy Class AA acc. to IEC 60751
Class A acc. to IEC 60751
Class B acc. to IEC 60751
Class special or standard acc. to ASTM E230
Class 1 or 2 acc. to IEC 60584-2
Response time fastest response time with thermowell t90 starting at below 10 s
depending on configuration
Max. process pressure (static) depending on the configuration up to 100 bar
Operating temperature range PT100 TF iTHERM StrongSens:
-50 °C ...500 °C
(-58 °F ...932 °F)
PT100 TF iTHERM QuickSens:
-50 °C …200 °C
(-58 °F …392 °F)
PT100 WW:
-200 °C ...600 °C
(-328 °F ...1.112 °F)
PT100 TF:
-50 °C ...400 °C
(-58 °F ...752 °F)
Typ K:
max. 1.100 °C
(max. 2.012 °F)
Typ J:
max. 800 °C
(max. 1.472 °F)
Typ N:
max. 1.100 °C
(max. 2.012 °F)
Max. immersion length on request up to 4.500,0 mm (177'')
iTEMP TMT82 temperature transmitter with HART® communication
F
L
E
X
iTEMP TMT82 temperature transmitter with HART® communication iTEMP TMT82 temperature transmitter
iTEMP TMT82 temperature transmitter

HART® temperature transmitter as head, field or DIN rail device with two universal sensor inputs suitable for use in hazardous areas and SIL 2

Prices temporarily unavailable
Price on request
activating price
price: provide information
bookmark icon bookmark icon
Accuracy (Pt100, -50...200 °C) <= 0,1 K
(Pt100, -58...392 °F) <= 0,18 °F
High-temperature thermocouple thermometer - TAF16
F
L
E
X
High-temperature thermocouple thermometer - TAF16 iTHERM FlameLine TAF16 High temperature thermometer
iTHERM FlameLine TAF16 High temperature thermometer

Metric TC thermometer with metal or alloy thermowell for high-temperature applications

Prices temporarily unavailable
Price on request
activating price
price: provide information
bookmark icon bookmark icon
Accuracy class 2 acc. to IEC 60584
Max. process pressure (static) at 20 °C: 1 bar (15 psi)
Operating temperature range Type K:
-40 °C ...1.100 °C
(-40 °F ...2.012 °F)
Type J:
-40 °C ...750 °C
(-40 °F ...1.382 °F)
Type N:
-40 °C ...1.150 °C
(-40 °F ...2102 °F)
Type S:
0 °C ...1.400 °C
(32 °F ...2.552 °F)
Max. immersion length on request up to 4.525,00 mm (178,15'')

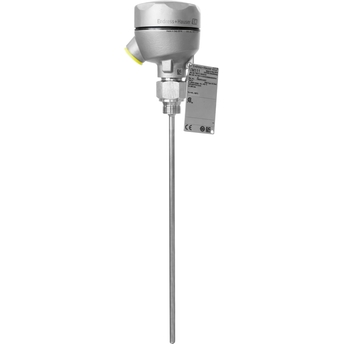

Explosion proof temperature sensor iTHERM ModuLine TM111
F
L
E
X
Explosion proof temperature sensor iTHERM ModuLine TM111 iTHERM ModuLine TM111 Industrial modular thermometer
iTHERM ModuLine TM111 Industrial modular thermometer

Metric RTD/TC direct contact thermometer for a wide range of industrial applications

Prices temporarily unavailable
Price on request
activating price
price: provide information
bookmark icon bookmark icon
Accuracy Class AA acc. to IEC 60751
Class A acc. to IEC 60751
Class B acc. to IEC 60751
Class special or standard acc. to ASTM E230
Class 1 or 2 acc. to IEC 60584-2
Response time t90 starting at < 1,5 s iTHERM QuickSens
depending on configuration
Max. process pressure (static) depending on the configuration
Operating temperature range PT100 TF iTHERM StrongSens:
-50 °C ...500 °C
(-58 °F ...932 °F)
PT100 TF iTHERM QuickSens:
-50 °C …200 °C
(-58 °F …392 °F)
PT100 WW:
-200 °C ...600 °C
(-328 °F ...1.112 °F)
PT100 TF:
-50 °C ...400 °C
(-58 °F ...752 °F)
Typ K:
max. 1.100 °C
(max. 2.012 °F)
Typ J:
max. 800 °C
(max. 1.472 °F)
Typ N:
max. 1.100 °C
(max. 2.012 °F)
Max. immersion length on request up to 4.500,0 mm (177'')
Imperial temperature sensor without thermowell
F
L
E
X
New warning sign Not available
Imperial temperature sensor without thermowell iTHERM ModuLine TM112 Industrial modular thermometer
iTHERM ModuLine TM112 Industrial modular thermometer
warning sign Not available

Imperial RTD/TC direct contact thermometer for a wide range of industrial applications

Not available in your market
bookmark icon bookmark icon
Accuracy Class AA acc. to IEC 60751
Class A acc. to IEC 60751
Class B acc. to IEC 60751
Class special or standard acc. to ASTM E230
Class 1 or 2 acc. to IEC 60584-2
Response time t90 starting at < 1,5 s iTHERM QuickSens
depending on configuration
Max. process pressure (static) depending on the configuration
Operating temperature range PT100 TF iTHERM StrongSens:
-50 °C ...500 °C
(-58 °F ...932 °F)
PT100 TF iTHERM QuickSens:
-50 °C …200 °C
(-58 °F …392 °F)
PT100 WW:
-200 °C ...600 °C
(-328 °F ...1.112 °F)
PT100 basic TF:
-50 °C ...200 °C
(-58 °F ...392 °F)
Typ K:
max. 1.100 °C
(max. 2.012 °F)
Typ J:
max. 800 °C
(max. 1.472 °F)
Typ N:
max. 1.100 °C
(max. 2.012 °F)
Max. immersion length on request up to 180"

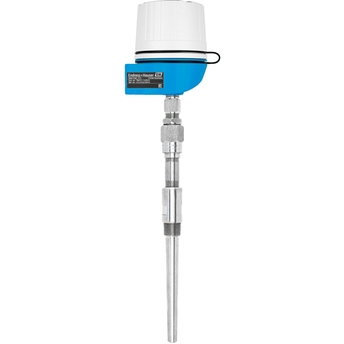

Modular TC or RTD industrial thermometer
F
L
E
X
Modular TC or RTD industrial thermometer iTHERM ModuLine TM151 Industrial modular thermometer
iTHERM ModuLine TM151 Industrial modular thermometer

Metric RTD/TC thermometer with barstock thermowell for a wide range of industrial applications

Prices temporarily unavailable
Price on request
activating price
price: provide information
bookmark icon bookmark icon
Accuracy Class AA acc. to IEC 60751
Class A acc. to IEC 60751
Class B acc. to IEC 60751
Class special or standard acc. to ASTM E230
Class 1 or 2 acc. to IEC 60584-2
Response time depending on configuration
Max. process pressure (static) depending on the configuration up to 500 bar
Operating temperature range PT100 TF iTHERM StrongSens:
-50 °C ...500 °C
(-58 °F ...932 °F)
PT100 TF iTHERM QuickSens:
-50 °C …200 °C
(-58 °F …392 °F)
PT100 WW:
-200 °C ...600 °C
(-328 °F ...1.112 °F)
PT100 TF:
-50 °C ...400 °C
(-58 °F ...752 °F)
Typ K:
max. 1.100 °C
(max. 2.012 °F)
Typ J:
max. 800 °C
(max. 1.472 °F)
Typ N:
max. 1.100 °C
(max. 2.012 °F)
Max. immersion length on request up to 1.500,0 mm (59,06'')
Bar stock imperial thermometer
F
L
E
X
New warning sign Not available
Bar stock imperial thermometer iTHERM ModuLine TM152 Industrial modular thermometer
iTHERM ModuLine TM152 Industrial modular thermometer
warning sign Not available

Imperial RTD/TC thermometer with barstock thermowell for a wide range of industrial applications

Not available in your market
bookmark icon bookmark icon
Accuracy Class AA acc. to IEC 60751
Class A acc. to IEC 60751
Class B acc. to IEC 60751
Class special or standard acc. to ASTM E230
Class 1 or 2 acc. to IEC 60584-2
Response time depending on configuration
Max. process pressure (static) depending on the configuration up to 500 bar
Operating temperature range PT100 TF iTHERM StrongSens:
-50 °C ...500 °C
(-58 °F ...932 °F)
PT100 TF iTHERM QuickSens:
-50 °C …200 °C
(-58 °F …392 °F)
PT100 WW:
-200 °C ...600 °C
(-328 °F ...1.112 °F)
PT100 basic TF:
-50 °C ...200 °C
(-58 °F ...392 °F)
Typ K:
max. 1.100 °C
(max. 2.012 °F)
Typ J:
max. 800 °C
(max. 1.472 °F)
Typ N:
max. 1.100 °C
(max. 2.012 °F)
Max. immersion length on request 84"
Non-invasive temperature assembly TM611
F
L
E
X
New
Non-invasive temperature assembly TM611 iTHERM SurfaceLine TM611 Surface thermometer
iTHERM SurfaceLine TM611 Surface thermometer

Non-invasive RTD/TC thermometer with high measurement performance for demanding applications

Prices temporarily unavailable
Price on request
activating price
price: provide information
bookmark icon bookmark icon
Accuracy depending on application
Class AA acc. to IEC 60751
Class A acc. to IEC 60751
Class B acc. to IEC 60751
Class special or standard acc. to ASTM E230
Class 1 or 2 acc. to IEC 60584-2
Response time depending on application
Operating temperature range -196 °C…400 °C (-320,8 °F...752 °F)
Multipoint thermometer iTHERM TMS01 MultiSens Flex
F
L
E
X
Multipoint thermometer iTHERM TMS01 MultiSens Flex iTHERM MultiSens Flex TMS01 Multipoint thermometer
iTHERM MultiSens Flex TMS01 Multipoint thermometer

Direct contact TC/RTD temperature profiling solution with 3D-bendable sensors for oil, gas and petrochemical applications

Prices temporarily unavailable
Price on request
activating price
price: provide information
bookmark icon bookmark icon
Accuracy class 2 acc. to IEC 60584
ASTM E230 and ANSI MC 96.1
Response time depending on configuration:
TC:
t50 = 2 s
t90 = 5 s
RTD:
t50 = 0,8s
t90 = 2s
Max. process pressure (static) at 20 °C: 100 bar (1450 psi)
Operating temperature range Type K:
max. 1.150 °C
(max. 2.102 °F)
Type J:
max. 920 °C
(max. 1.688 °F)
Type N:
max. 1.150 °C
(max. 2.102 °F)
Type T:
max. 370 °C
(max. 698 °F)
Max. immersion length on request up to 30.000,00 mm (1181'')

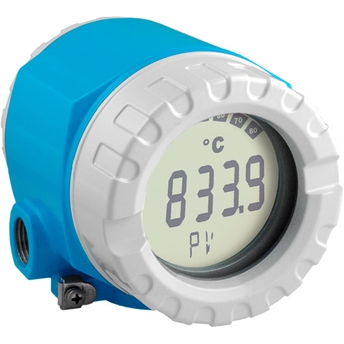

Temperature field transmitter TMT162 with HART, FOUNDATION Fieldbus or Profibus communication
F
L
E
X
Temperature field transmitter TMT162 with HART, FOUNDATION Fieldbus or Profibus communication iTEMP TMT162 temperature transmitter
iTEMP TMT162 temperature transmitter

HART®, FOUNDATION Fieldbus™ or PROFIBUS® temperature field transmitter with two universal sensor inputs suitable for use in hazardous areas and SIL 2

Prices temporarily unavailable
Price on request
activating price
price: provide information
bookmark icon bookmark icon
Accuracy (Pt100) <= 0,1 K (HART, FF, PA)
(Pt100) <= 0,18 °F (HART, FF, PA)
