Specs at a glance
-
Accuracy
class 2 acc. to IEC 60584
-
Response time
t50 = 1 s
t90 = 2 s -
Max. process pressure (static)
at 20 °C: 25 bar (363 psi)
-
Operating temperature range
Type K:
max. 1.100 °C
(max. 2.012 °F)
Type J:
max. 750 °C
(max. 1.382 °F) -
Max. immersion length on request
up to 100.000,00 mm (3.937,01'')
Field of application

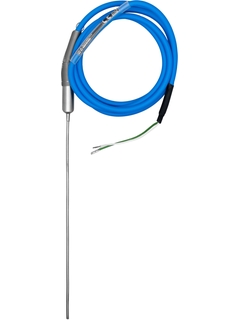

The thermocouple (TC) cable probe is easy to install and provide a high operational safety due to reliable and accurate temperature measurement in common processes. The probe is specially suited to temperature measurement in machinery, laboratory equipment and plants in gaseous or liquid medium like air, water, oil, etc. Without additional thermowell the probe sheath is directly in contact with the process medium. This enables to detect rapid temperature changes fast and accurate.
The resistance thermometer is specially suited to temperature measurement in machinery, power stations and plants in gaseous or liquid media like air, steam, water and oil.
Benefits
High flexibility through user-specific insertion lengths and variable process connections
Fast response time
Different types of thermocouples according to DIN EN 60584 and ASTM E230/ANSI MC96.1: type J (Fe-CuNi), type K (NiCr-Ni)
Types of protection for use in hazardous locations: Intrinsic Safety (Ex ia) and non-Sparking (Ex nA)
NEPSI approval (Ex ia)
