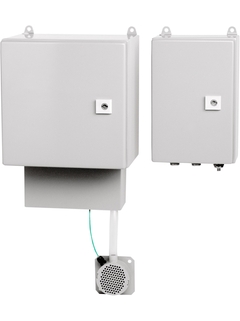

product picture of the visual range measuring device VICOTEC450

VICOTEC450
visual range measuring device

Extractive visibility measurement for increased safety in tunnels

IVIC450
Loading price
Prices temporarily unavailable
Price on request
activating price
price: provide information
product picture of the visual range measuring device VICOTEC450
  • F
  • L
  • E
  • X
©Endress+Hauser

Specs at a glance

  • Measured variables

    Visibility (K-value)

  • Measuring range

    Visibility (K-value): 0 ... 15 km⁻¹ / 0 ... 5,000 km⁻¹
    Temperature: -50 ... +250 °C

  • Ambient temperature range

    –30 °C ... +55 °C

Field of application

The VICOTEC450 draws air from inside the tunnel and determines the visibility with a high level of accuracy using scattered light technology. It regularly and automatically carries out a functional test including the function of the laser and receiver as well as the contamination of the optics. Maintenance requirements for cleaning and filter exchange are automatically registered and signaled in time by the VICOTEC450 due to contamination check and measurement of the air flow rate (optional).

  • Visibility monitoring in tunnels for ventilation control

  • Smoke detection in tunnels


Device properties:

  • Regular functional test with contamination measurement

  • Linearity test can be carried out with filter set

  • Internal purge air for long intervals between cleaning

  • Maintenance signal (filter and cleaning)

  • Logbook function

  • Extendable with various interfaces or I/O modules

Benefits

  • Very reliable operation due to full self-test

  • Cost-effective and fast commissioning (no optical alignment required on site)

  • Flexible electrical integration thanks to the easy connection of additional interfaces or I/O modules
