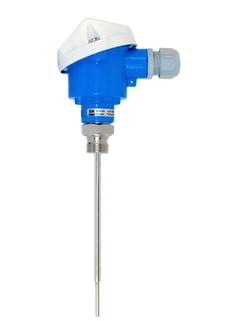

Metric RTD/TC direct contact thermometer for a wide range of industrial applications
-
Fundamental metric RTD/TC direct contact thermometer for a wide range of industrial applications
-
Simple products
-
Easy to select, install and operate
Technical excellence
Simplicity
-
Standard products
-
Reliable, robust and low-maintenance
Technical excellence
Simplicity
-
High-end products
-
Highly functional and convenient
Technical excellence
Simplicity
-
Specialized products
-
Designed for demanding applications
Technical excellence
Simplicity
| FLEX selections |
Technical excellence |
Simplicity |
Fundamental selection
Meet your basic measurement needs
|
Technical excellence
|
Simplicity
|
Lean selection
Handle your core processes easily
|
Technical excellence
|
Simplicity
|
Extended selection
Optimize your processes with innovative technologies
|
Technical excellence
|
Simplicity
|
Xpert selection
Master your most challenging applications
|
Technical excellence
|
Simplicity
|
-
Characteristic / Application
metric style
modular temperature assembly
fast response time (reduced/tapered tip)
threaded process connection
without neck
-
Thermowell / protection tube
without (not intended to use with thermowell)
-
Insert / probe
mineral insulated (MI), flexible
-
Outer diameter protection tube / Insert
6,0 mm (0,24'')
9,0 mm (0,35'')
-
Max. immersion length on request
up to 10.000,00 mm (393,70'')
-
Material protection tube/ thermowell
-
Process connection
male thread:
G1/2"
G3/4"
G1"
NPT1/2"
NPT3/4"
NPT1"
M20x1.5
-
-
-
Operating temperature range
PT 100:
-50 °C ... 600 °C
(-58 °F ...1.112 °F)
-
Max. process pressure (static)
at 20 °C: 20 bar (290 psi)
-
Accuracy
class A acc. to IEC 60751
class AA acc. to IEC 60751
-
Response time
depending on configuration
t50 = 3 s
t90 = 6 s
-
Integration head transmitter
yes (4 … 20 mA; HART; PROFIBUS PA; FOUNDATION FIELDBUS)
2 documents
-
Information technique Thermorésistance Omnigrad TST41N
Thermorésistance à insertion directe et temps
de réponse court
Gaine à isolation minérale
Raccord process fileté
Avec tube de
renfort mécanosoudé
|
Language:
|
French
|
|
Version:
|
01/11/1998
|
|
File size:
|
231.2 KB
|
|
File name:
|
TI232tfr_1198.pdf
|
-
Neue Version (01.14): Omnigrad TST40N, TST41N
Modulares Widerstandsthermometer mit Gewinde als Prozessanschluss
|
EN
|
|
|
|
09/10/2014
|
|
|
|
|
Language:
|
German
|
|
Version:
|
09/10/2014
|
|
File size:
|
663.1 KB
|
|
File name:
|
TI01178TDE_0114.pdf
|
60 spare parts & accessories
60 spare parts & accessories
60 spare parts & accessories
-
iTEMP TMT82, Transmitter HART
Drawing number
Order code
B
TMT82-
-
iTEMP TMT84, Transmitter PA
Drawing number
Order code
B
TMT84-
-
iTEMP TMT85, Transmitter FF
Drawing number
Order code
B
TMT85-
-
-
Fixing kit cpl. TMT8x/7x (european)
-
iTEMP TMT82, Transmitter HART
Drawing number
Order code
B
TMT82-
-
iTEMP TMT84, Transmitter PA
Drawing number
Order code
B
TMT84-
-
iTEMP TMT85, Transmitter FF
Drawing number
Order code
B
TMT85-
-
Display Unit Head Transmitter
Drawing number
Order code
B
TID10-
-
Fixing kit cpl. TMT8x/7x USA(american)
-
iTEMP TMT182, Head Transmitter HART
Drawing number
Order code
B
TMT182-
-
-
Readwin 2000 Operation + Read. software
-
-
Drawing number
Order code
D
TA30A-
-
Drawing number
Order code
D
TA30D-
-
Drawing number
Order code
D
TA20B-
-
Spare parts kit copper ring G1/2"
-
Spare parts kit copper ring G3/4"
-
Spare parts kit copper ring M20x1.5
-
Spare parts kit copper ring G1"
-
Spare parts kit ring D21/di 10xgreen
