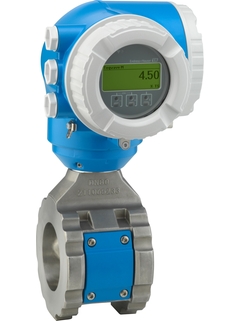

Product picture of total solids meter Proline Teqwave MW 300

Proline Teqwave MW 300 – Total solids meter

Inline measuring device for total solids measurement in wastewater sludge with a compact, easily accessible transmitter

4W3B

Compare

This product is not available in this market.

Proline Teqwave MW 300 – real-time total solids measurement from primary sludge to dewatered sludge

Specs at a glance

Measurement range

0 to 500 g/l (0 to 31 lb/ft3), 0 to 50%

See all specifications

Field of application

The inline measuring device Teqwave MW 300 enhances sludge treatment in wastewater treatment plants through real-time total solids measurement using microwave transmission. This allows quicker, more efficient process optimization and fewer lab measurements. Continuous data availability improves solid-liquid separation, boosts operational safety, and enables swift response to process changes. Typical applications in sludge treatment include clarification, digestion, and dewatering.

The space-saving compact transmitter version Proline 300 is designed with a high degree of flexibility in mind, accommodating various operational and system integration needs. It provides access from one side, a remote display, and enhanced connectivity features. For easy operation and to provide additional process and device information, it comes with a built-in web server and optional integrated WLAN.

Benefits

Reliable, real-time measuring performance – permanent in-line measurement with excellent repeatability
Less maintenance – polished measuring tube reduces build-up formation and extends cleaning intervals
Reduced effort in programming – onboard load rate calculation available in combination with a flowmeter
Fewer process measuring points – multivariable measurement (total solids, temperature, conductivity)
Easy installation – innovative sensor construction and state-of-the-art technology with web server (optional WLAN)
Full access to process and diagnostic information – numerous freely combinable I/Os available
Integrated verification – Heartbeat Technology enables documented device functionality without process interruption
